When it comes to crushing boron tin ore (or any tin-bearing ore), the choice of equipment depends on the ore’s hardness, abrasiveness, moisture content, and desired output size. Here are the most suitable crushing equipment options for boron tin ore:
1. Jaw Crusher (Primary Crushing)
– Best for initial coarse crushing of raw ore.
– Handles large feed sizes (up to ~1,500 mm).
– Robust and low maintenance.
– Example: PE Series or C6X Jaw Crusher.

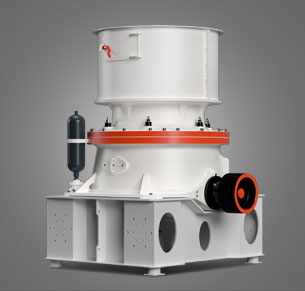

2. Cone Crusher (Secondary Crushing)
– Ideal for medium-hard to hard ores.
– Produces a more uniform particle size.
– Hydraulic models (like HPT or HST series) offer better adjustment and efficiency.
3. Impact Crusher (Alternative for Brittle Ores)
– Suitable if the ore is less abrasive but brittle.
– Produces a cubical product (good for downstream processing).
– Example: PFW or CI5X Impact Crusher.
4. Hammer Crusher (For Friable Ores)
– Effective if the tin ore is softer or contains clay.
– High reduction ratio in one stage.
– Risk of overgrinding if not calibrated properly.
5. Roll Crusher (For Smaller Operations)
– Used for intermediate crushing of medium-hard ores.
– Minimal fines production compared to hammer mills.
Key Considerations:
– Moisture Content: If the ore is wet/sticky, pre-screening or drying may be needed to avoid clogging.
– Abrasiveness: Tin ores often contain quartz, which is abrasive—choose wear-resistant liners/materials.
– Downstream Process: If followed by gravity separation (like jigging or shaking tables), avoid excessive fines generation.
.jpg)
Recommended Flow:
1. Primary Crushing: Jaw Crusher → Reduce to ~100–150 mm.
2. Secondary Crushing: Cone Crusher → Further reduce to ~10–30 mm.
3. (Optional) Tertiary Crushing: Fine cone crusher or impact crusher for <10 mm if needed.
Additional Equipment:
– Vibrating Feeder & Grizzly Screen: Remove oversized material before crushing.
– Dust Control System: Essential to comply with environmental regulations.
