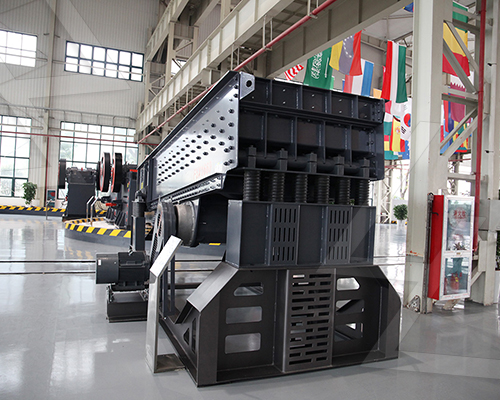

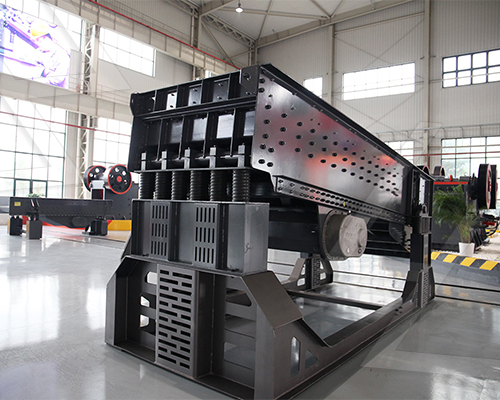

F5X Series Vibrating Feeder

F5X Series Vibrating Feeder

Outstanding performance, Wide applications

According to rich experiences and market feedback, F5X Series Vibrating Feeder is produced newly. During the process vibrating feeder feeds materials continuously, it can also do screening work in order to improve the efficiency of follow-up work, which provides comfortable experience.

Applications: Mining, metallurgy, construction, coal, chemical, etc.

Learn More About Z&W CC F5X Series Vibrating Feeder

Strong vibration intensity, high screening efficiency

Adopting advanced idea and technics, F5X Series Vibrating Feeder takes advantages of stronger vibration intensity, larger capacity and higher screening efficiency. The capacity of F5X Series Vibrating Feeder is 1.5 times larger than traditional vibrating feeder.

Simple adjustment, wide application

F5X Series Vibrating Feeder adopts Y3 series motor which is efficient and energy saving, and the frequency transformer is equipped to adjust the obliquity accurately. There is a pin structure in the spring support realizing adjustment from 0° to 15° which can satisfy the requirements of feeding and screening about different materials.

More reliable EV Series Vibration Exciter

Amplitude is adjustable. F5X Series Vibrating Feeder is equipped with a full range of EV Series Vibration Exciter. There are 5 kinds of vibration exciter from EV1-EV5 can be chose to change the vibration force by adjusting numbers of weights.
Isolate structure. There are two lubrication systems with little influence on any of them making the maintenance time reduced and overhaul easier. Besides, the fuel consumption of EV Series Vibration Exciter can be saved a quarter of the traditional vibrating feeder’s.
More reliable performance. EV Series Vibration Exciter adopts quality bearing and its vibration intensity has reached the international standard. In a word, EV Series Vibration Exciter takes advantages of high throughput, high screening efficiency, large capacity, long service life, etc.

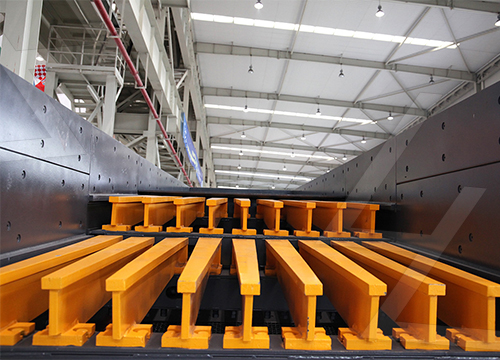

Anti-blocking bar with grand staircase

High screening probability. The bars with grand staircase has a high drop, which make the materials rolling during moving and touching the bars as soon as possible. Besides, interlaced bars increase the contact between materials and bars and the screening probability is increased.
Long service life. The bars, whose carrying capacity is much stronger, are made of ZGMn13-4 materials. The cross section of cam can make stratification between large grained and granule, and the friction between materials and bars can be reduced therefore the equipment has longer service life.
Avoid blocking up the sieve pore. It is effective to avoid blocking up the sieve pore because of the sieve pore with a shape of comb-finger and bars with high drops.

A feed box which can accommodate materials much more

The rectangular framework, which is support of the inlet, has firm structure. The problem about non-uniform stress won’ t result in the cracking of side-panel, because the plant adopts angle steel to firm its side-panel and outer-panel.

Allow for springs at the inlet in order to adjust silo pressure by changing numbers of springs.

There are malposed springs providing support at the inlet in order to adjust silo pressure by changing numbers of springs.

Unique structure of motor cabinet

Adopting rubber spring with the structure of tensioning, the equipment eliminates the effects that come from the vibrating of feed box on motor, and it takes advantages of long service life and low noise.
